Anchor Winch

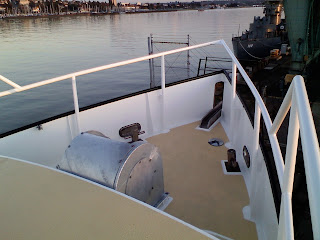

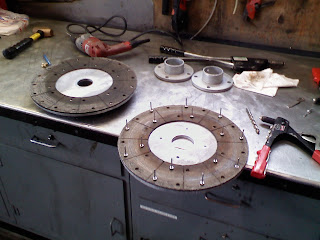

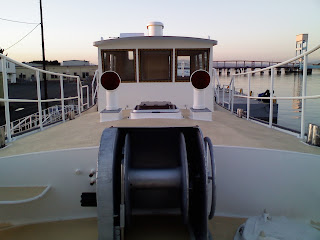

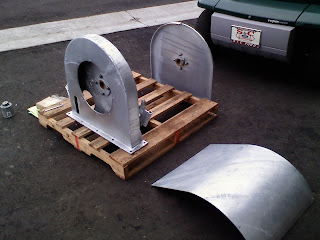

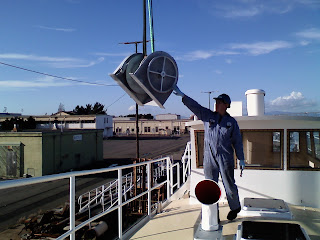

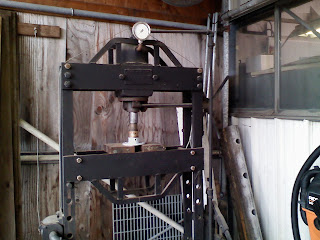

Here are a bunch of pictures from the last week of assembling and installing our anchor winch. We had plans to stage a crane on-site for one day to do a job on one of the Baylink ferries. I put our anchor winch project on the front burner so we could get it assembled in time to use this crane for our installation while it was here. I had completely disassembled and cleaned all the parts last winter and so they were ready for the galvanizer. Here they were dipped in a nice bath of molten zinc which should protect all the parts from corrosion for many years to come. Since it had been a year since I took the thing apart, it took a little head scratching to figure out how all the bits and pieces went back together - next time I need to take more pictures. The winch body and drum are very heavily built from 5/16" steel. The main shaft is 1.5" stainless steel riding in bronze bearings with grease fittings. It is powered by a hydraulic motor that turns a chain drive running in an oil bath. There is a clutch type assembly with a large clutch pad on either side of the drum. This allows you to engage/disengage the drum from the shaft by turning the large hand wheel on the port side of the winch. A nice robust design that shouldn't give us any problems, and will be easy to fix if it does...
