Heres some very nice work done by our NA (Naval Architect).

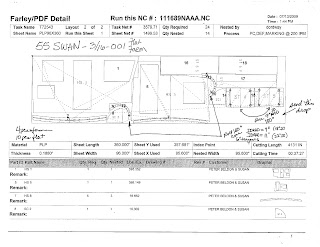

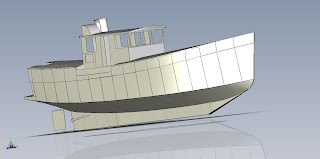

These are final drafts for the lofting which have since been numerically modeled on computer, and turned into cutting files which we sent to Far West Steel in Oregon. All the parts are "nested" onto large sheets of pre-primed steel plate so as to have as little waste as possible. Comes out looking something like this:
